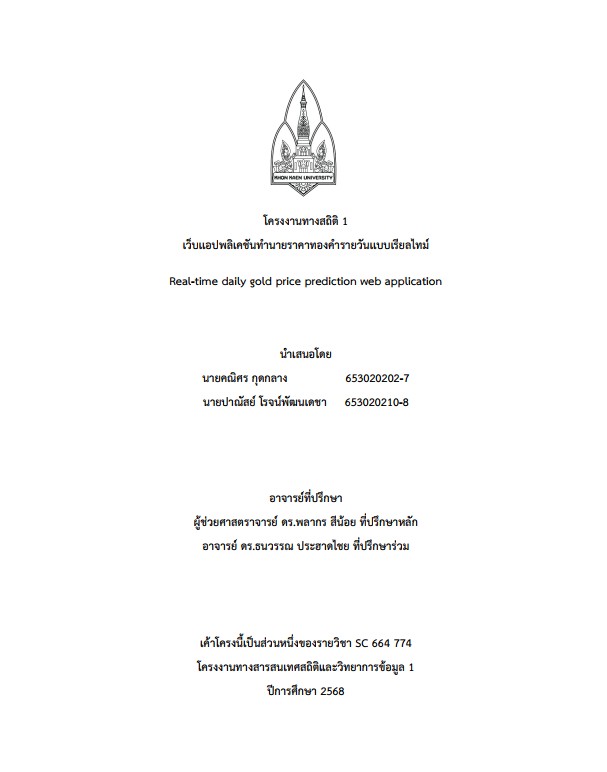

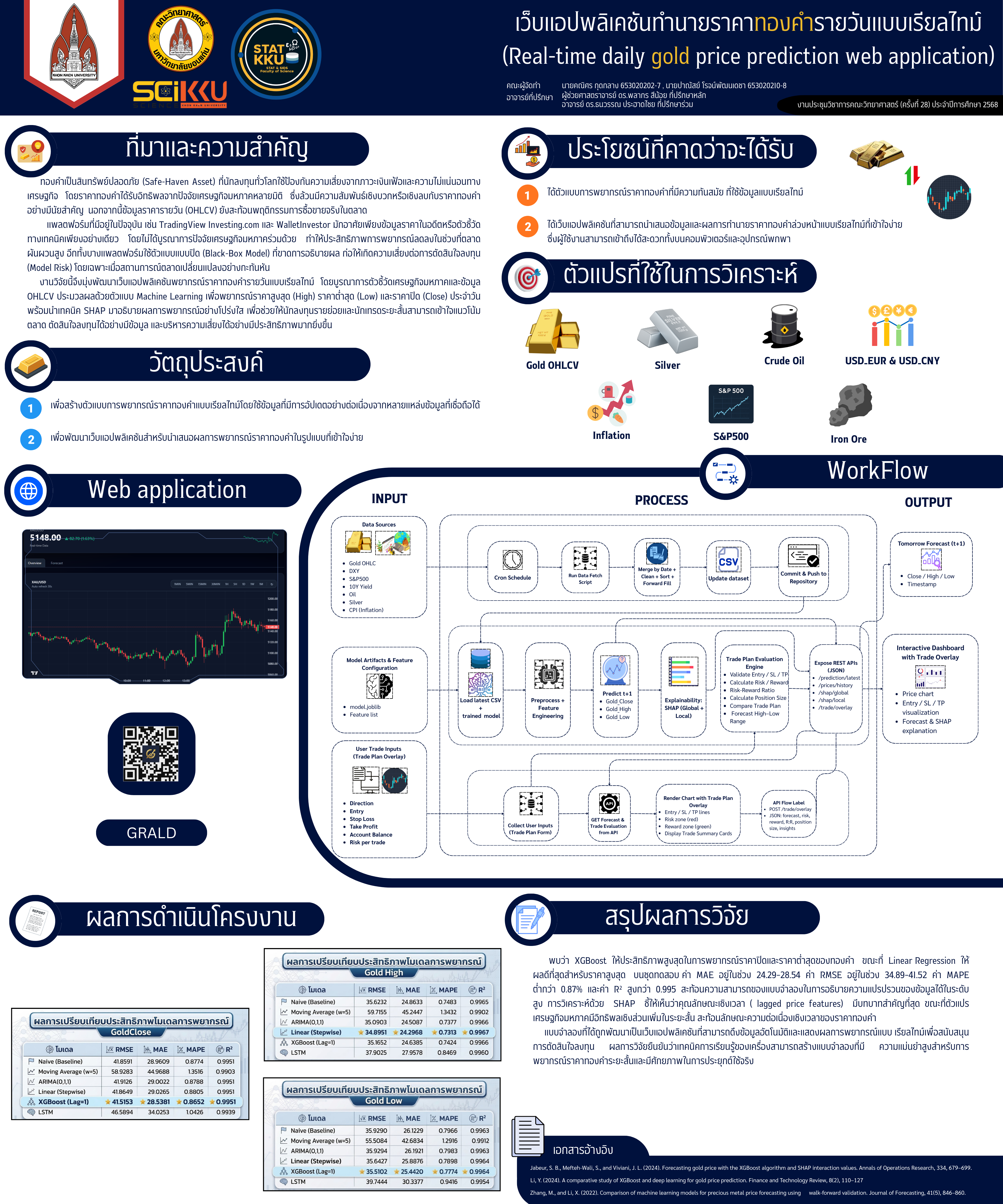

Real-time daily gold price prediction web application

GRALD is designed as an end-to-end system that continuously maintains an up-to-date dataset, trains forecasting models under a leak-free time-series protocol, and serves next-day (t+1) predictions through a REST API. The system also includes an optional Trade Plan Overlay module that helps users quantify trading plans (risk/reward, position sizing) and visualize Entry/SL/TP on top of the price chart. The overall system is organized into four main workflows.

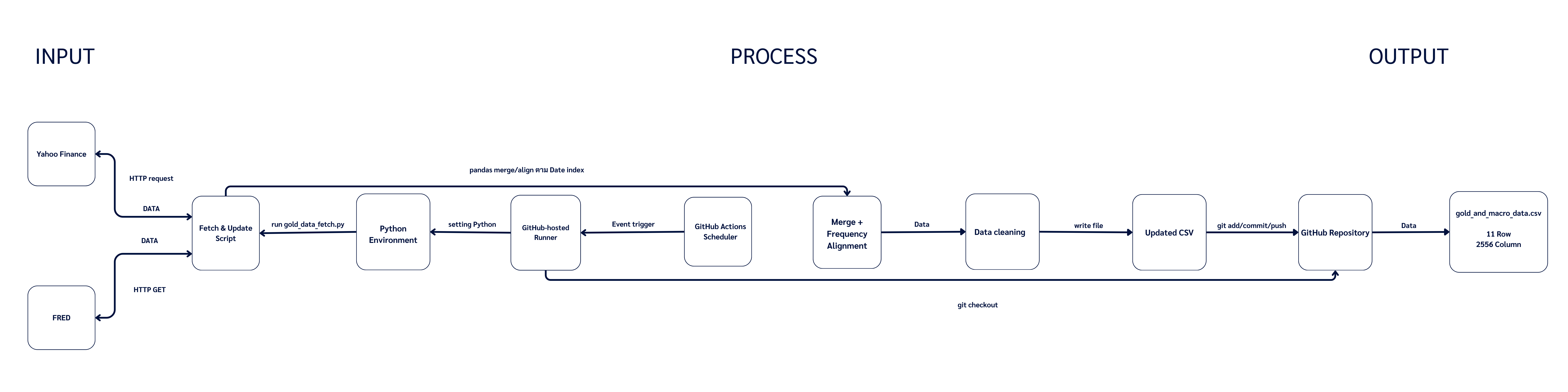

1) Real-time Updated Data Workflow (Data Pipeline)

• Inputs: Daily market variables from Yahoo Finance (e.g., gold OHLCV and related financial variables) and macroeconomic indicators from FRED.
• Automation & Execution: GitHub Actions runs on a scheduled cron trigger and executes gold_data_fetch.py in a Python environment on a GitHub-hosted runner.
• Merge + Frequency Alignment: All sources are merged using a shared Date index. Lower-frequency macro series (e.g., monthly) are aligned to the daily timeline using forward-fill so that every feature is available for each daily record.
• Cleaning & Versioning: The pipeline performs data cleaning (missing values, column consistency, date formats) and writes the updated dataset (e.g., gold_and_macro_data.csv) back to the repository via commit/push.
• Output: A continuously updated dataset in the GitHub repository, ensuring downstream training and inference always use the latest available data.

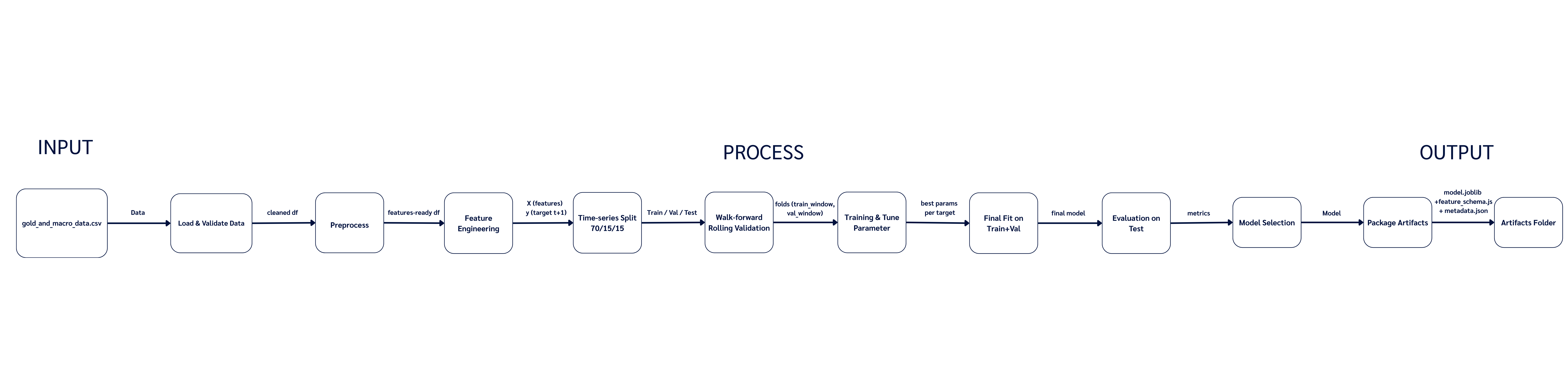

2) Model Training Workflow (Training & Model Selection)

• Data Loading & Validation: Load gold_and_macro_data.csv and run basic quality checks (missing values, data types, date continuity, and scale sanity checks).
• Preprocessing & Feature Engineering: Build a feature-ready dataframe; generate time-dependent features such as lag features, and construct one-step-ahead targets (t+1) for Gold_Close, Gold_High, and Gold_Low.
• Time-series Split + Walk-forward Validation: Use a time-ordered split (e.g., 70/15/15 train/val/test) and apply walk-forward rolling validation to prevent data leakage and better mimic real deployment conditions (train on past → validate on future windows).
• Training, Tuning, and Final Fit: Train multiple models / parameter sets across rolling windows; select the best hyperparameters per target; perform a final fit on Train+Val and evaluate on Test.
• Evaluation & Selection: Compare models using RMSE, MAE, MAPE, and R²; choose the best model per target (or a primary model for deployment).
• Packaging Artifacts: Export deployment-ready artifacts: model.joblib, feature_schema.json (required feature names + ordering), and metadata.json (model version, training period, metrics, timestamp).
• Output: An artifacts directory ready to be loaded by the prediction backend.

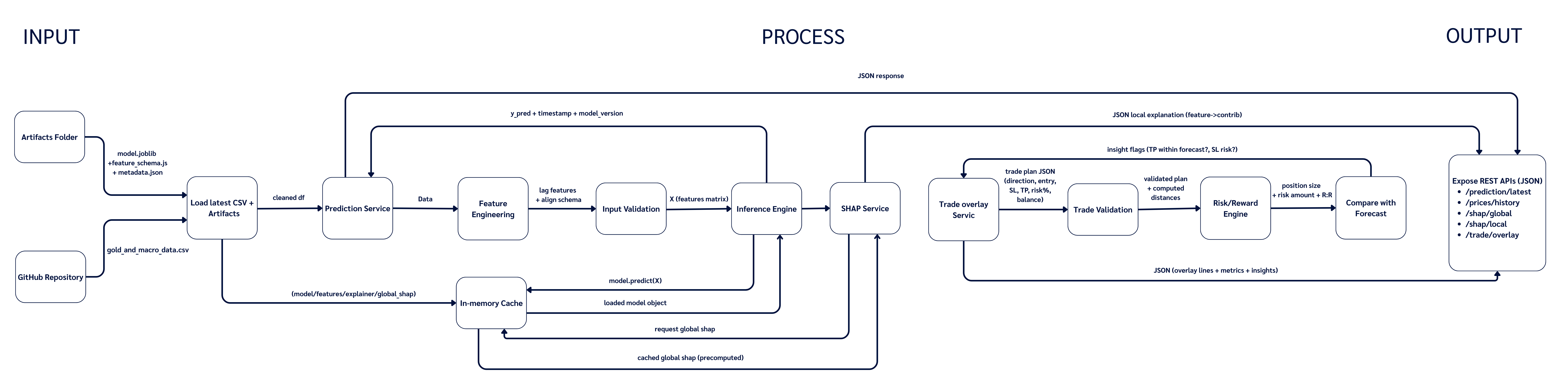

3) Prediction Backend Workflow (API + Inference + SHAP)

The backend is implemented as a prediction service that loads the latest dataset and the deployed artifacts, generates the correct feature matrix, and serves results through REST endpoints. It also provides SHAP explanations for model transparency.

Core Modules

• Load Latest CSV + Artifacts: Load gold_and_macro_data.csv and the deployed artifacts; validate schema compatibility to avoid feature mismatch at inference time.
• Feature Engineering: Construct the feature matrix X according to feature_schema.json, matching training-time transformations (including lag features).
• Input Validation: Validate request payloads and data formats before inference to prevent invalid requests.
• Inference Engine: Run model.predict(X) to compute next-day forecasts (t+1).
• SHAP Service: Provide: Global SHAP (overall feature importance; typically precomputed and cached) and Local SHAP (per-request feature contribution for a specific prediction point).
• In-memory Cache: Cache model objects, feature lists, SHAP explainers, and global SHAP results to reduce latency and avoid repeated loading.

REST API Endpoints

• /prediction/latest — latest forecast (t+1) with timestamp and model_version
• /prices/history — historical time series for charting
• /shap/global — global SHAP summary
• /shap/local — local SHAP explanation for a requested point
• /trade/overlay — trade plan evaluation + overlay lines + risk metrics

Output: Structured JSON responses consumed by the frontend to render charts, dashboards, and explanations.

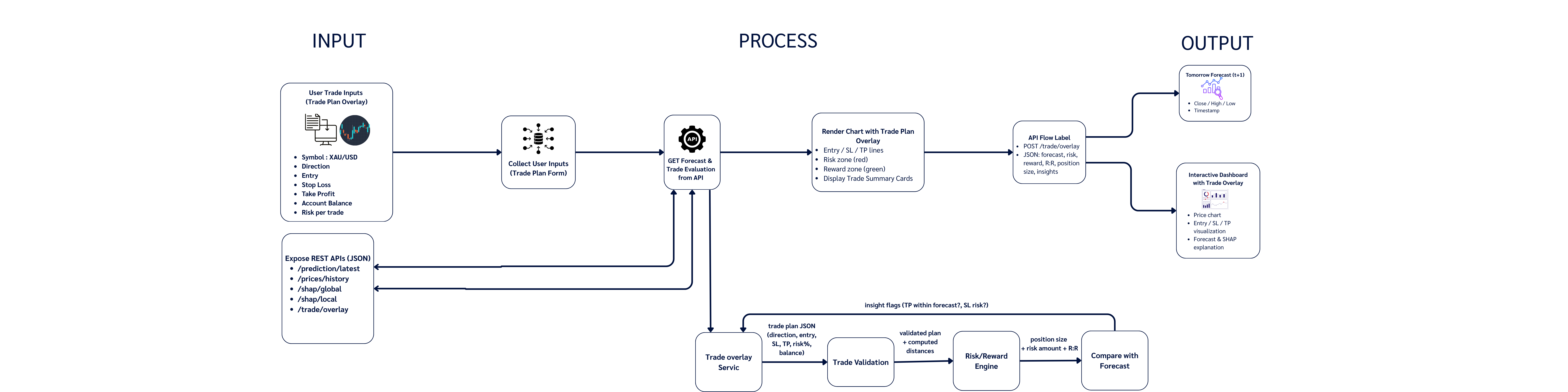

4) Trade Plan Overlay Workflow (Risk/Reward + Visualization)

This module allows users to input a trading plan and receive quantitative evaluation outputs (rather than trading signals). The output is visualized as an overlay on the price chart.

• User Inputs: Symbol (e.g., XAU/USD), direction (Buy/Sell), Entry, Stop Loss (SL), Take Profit (TP), account balance, and risk per trade (percentage or fixed amount).
• Trade Validation: Enforce trading logic constraints: Buy → SL < Entry < TP, Sell → TP < Entry < SL; reject invalid/negative/out-of-range inputs.
• Risk/Reward Engine: Compute risk distance |Entry − SL|, reward distance |TP − Entry|, risk/reward ratio (R:R), and position sizing based on the user's risk setting. Generate insight flags (e.g., "TP within forecast range?", "SL risk above threshold?").
• Compare with Forecast + Render: Call /prediction/latest, compare plan vs forecast, and return JSON for rendering Entry/SL/TP lines, risk zones, and summary cards (risk amount, R:R, position size, insights).
• Output: An interactive dashboard with price chart overlay and numeric risk metrics for decision support.

5) Frontend Integration (Presentation Layer)

• Fetch historical prices for charting from /prices/history
• Display the latest next-day forecast from /prediction/latest
• Show explainability via /shap/global and /shap/local
• Accept trade plan inputs and visualize overlay outputs from /trade/overlay

The backend acts as the single source of truth for forecasting, calculations, and explanations, while the frontend focuses on visualization and user interaction.

6) Key Design Considerations

• Leakage prevention: time-series splitting + walk-forward rolling validation
• Reproducibility: versioned artifacts + metadata (training period, metrics, timestamps)
• Performance: in-memory caching for model/explainer/global SHAP to reduce latency
• Maintainability: clear separation of concerns across data, training, serving, and overlay pipelines
• Extensibility: add new models/features by updating artifacts and schema without changing the UI logic
